SCA® Vitality sperm analysis for animals

SCA® Vitality is a module that automatically provides the percentage of live and dead spermatozoa in an animal semen sample.

This analysis module is also
available for Human and Toxicology.

Sperm Vitality is estimated by assessing the membrane integrity of the cells, and is fundamental for samples having less than 40% progressive motile spermatozoa. The percentage of the viable cells normally exceeds that of motile cells.

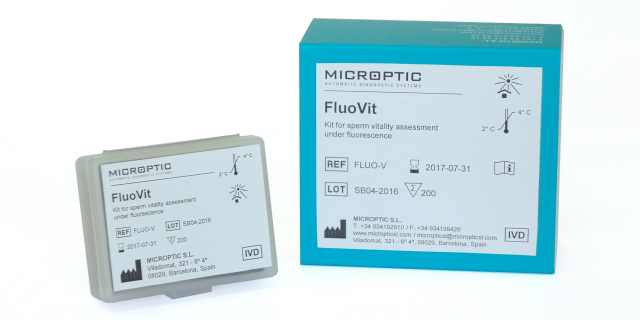

Vitality assessment can be performed with FluoVit kit (under fluorescence).

More information:

Information
request

Demo
request

Available for the following animal species

SCA® Vitality last news

Analysis improved

Vitality analysis and sperm detection improved.

Interactive threshold

Interactive threshold modification for sperm classification.

Export images

Export .bmp or .jpg images including or excluding the analysis.

Individual parameters

Export to Excel or save into the database the individual sperm parameters.

SCA® Vitality main features

Analysis is performed under fluorescence microscopy, in samples stained with FluoVit kit.

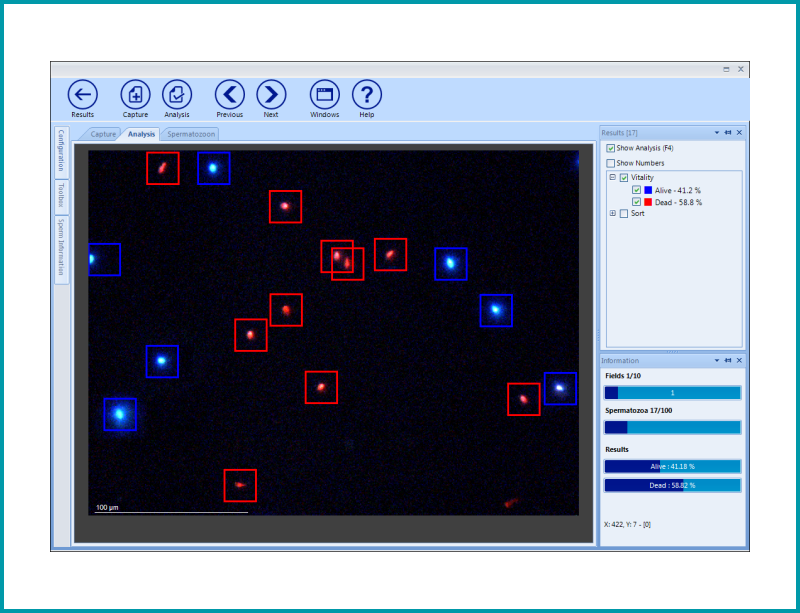

Spermatozoa are recognized and classified automatically. The analysis under fluorescence allows the differentiation between alive sperm (in blue), and the dead sperm (in red).

Additional information

SCA® Vitality in SCA® Editions

Set up options

	Vet Edition	Tox Edition	Research Edition

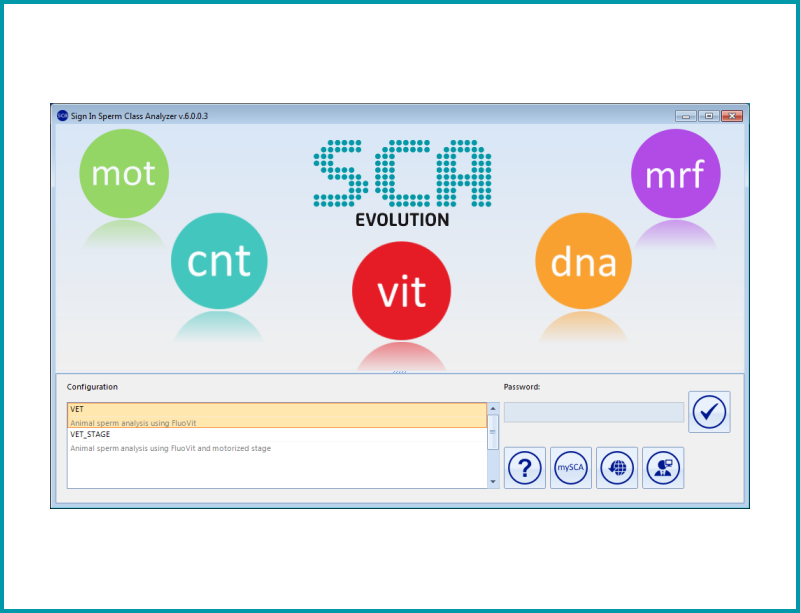

Creating new analysis configurations
Modification of the optics, microscope scales and image capture options
Modification of the particle area cut off parameter for cell detection
Motorised stage
Species available: Human	–	–
Species available: All (human, and all animals, including rat and mouse)	–	–
Species available: All animals with oval sperm head		–
Species available: rat and mouse	–

Digital camera options

	Vet Edition	Tox Edition	Research Edition
Specific digital Basler camera with 780×580
Specific digital Basler camera with 1280×1024

Results provided

	Vet Edition	Tox Edition	Research Edition
Total sperm counted

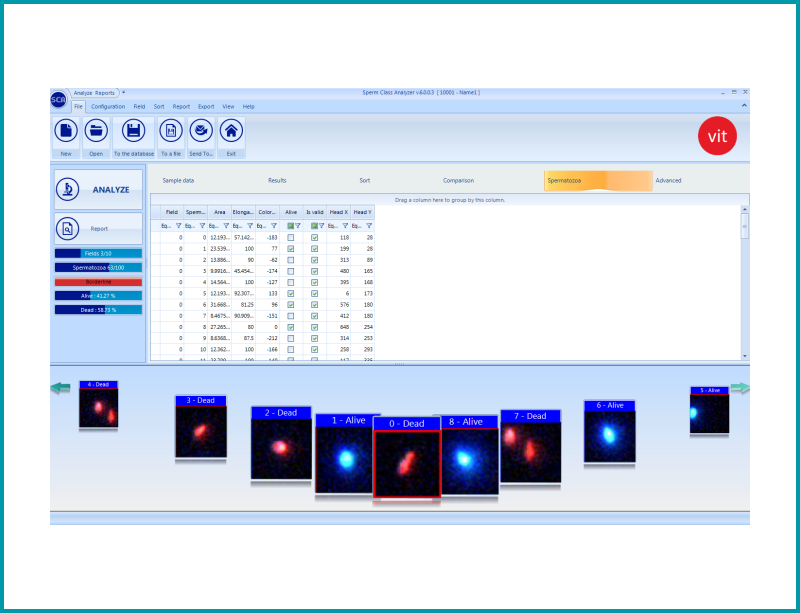

Percentage of the counted sperm that are alive and dead

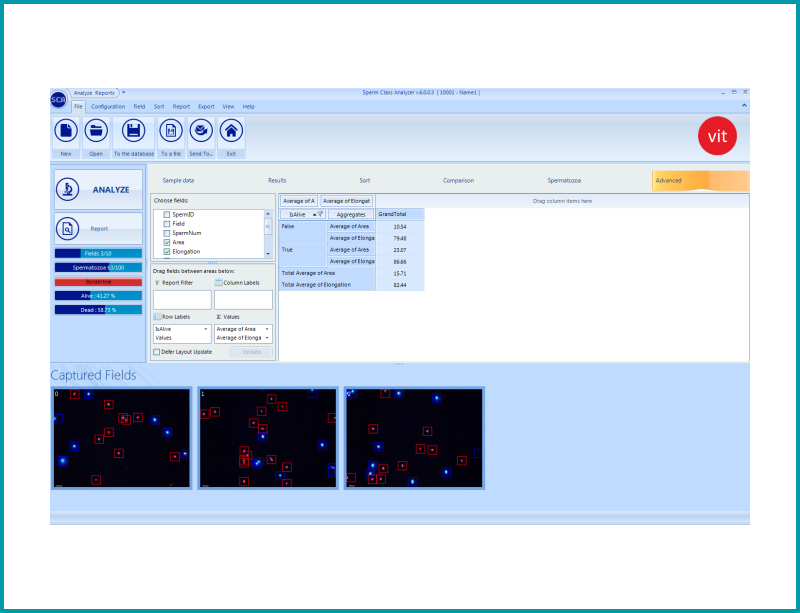

Captured images and distribution charts

Compatible modules

	Vet Edition	Tox Edition	Research Edition
SCA® dataShare
SCA® Stage Controller
SCA® Capture
SCA® Viewer
SCA® Editor

Technical specifications

Specifications

The assessment is under fluorescence microscopy at 20x: The specimen is illuminated with light of a specific wavelength, which is absorbed by the fluorochromes, causing them to emit light of longer wavelengths, i.e., of a different color than the absorbed light .

Vitality of spermatozoa is evaluated indirectly though the integrity of the cellular membrane using vital fluorescence staining FluoVit.

Possibility to add or eliminate spermatozoa and/or captures fields

Calculation of basic parametres: Number and percentage of live and dead spermatozoa.

Visualization of the analysis mask superimposed to the original image.

Image capture takes 1 second per field

Allows capture up to 30 fields of the sample
